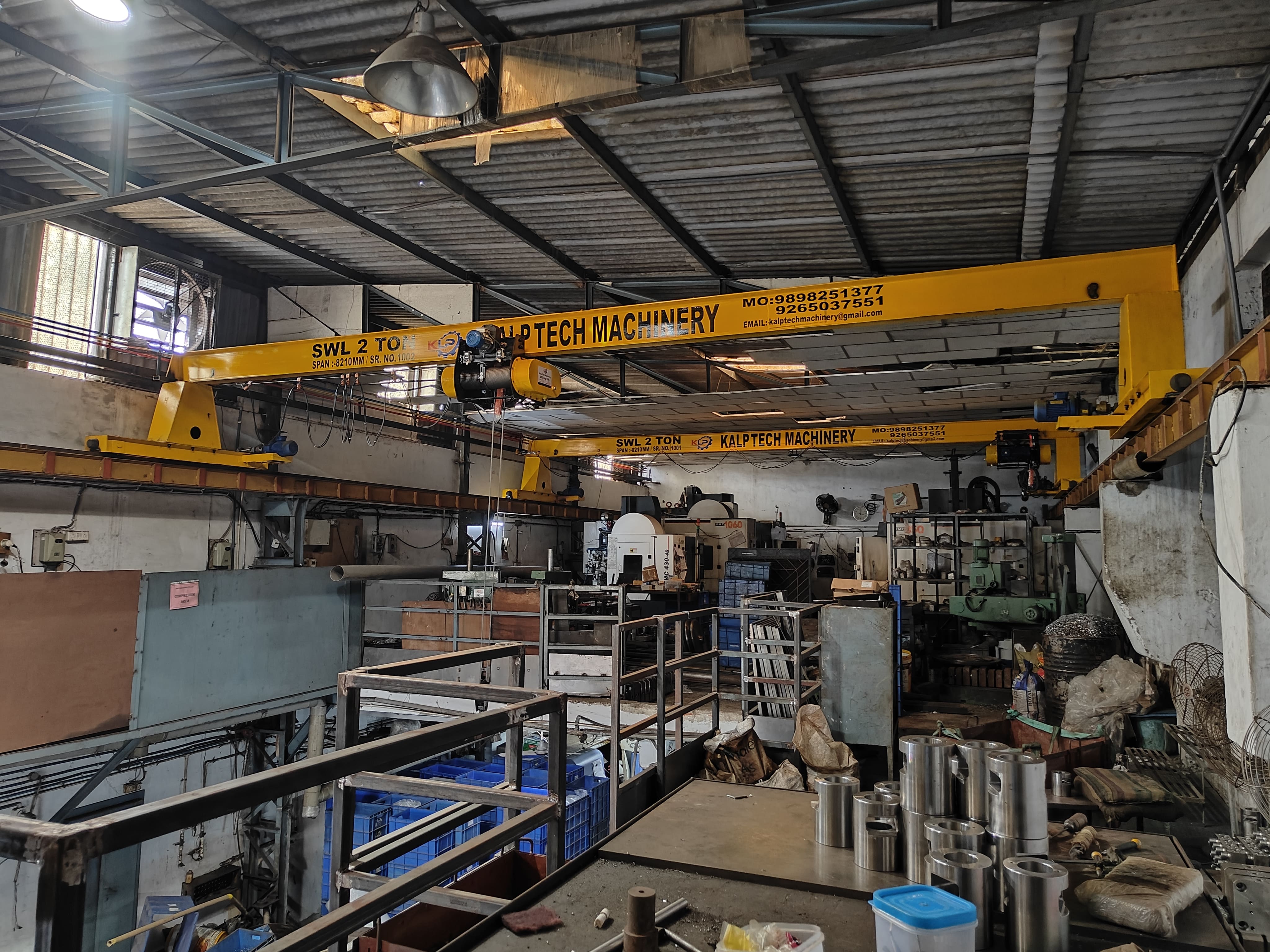

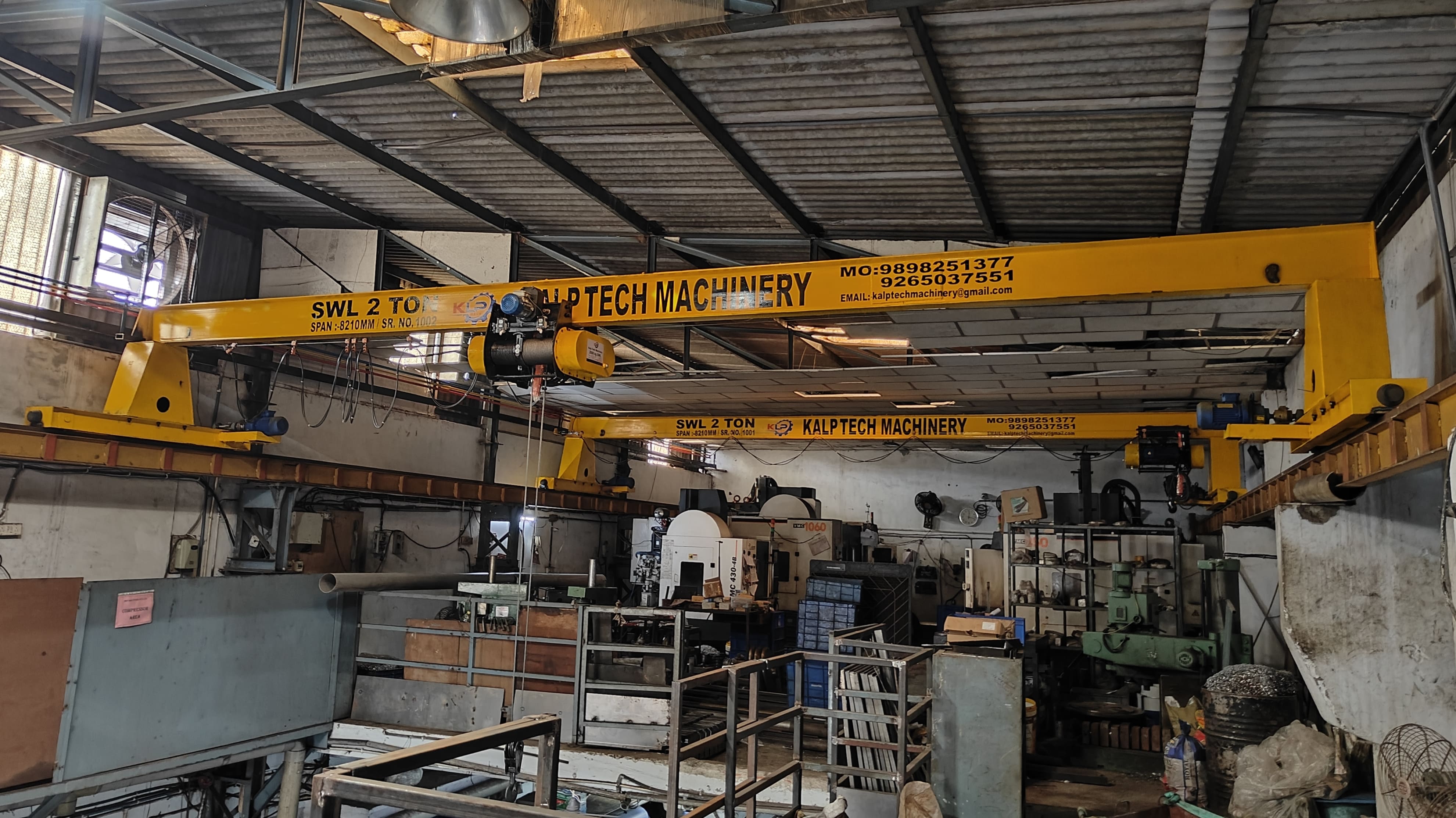

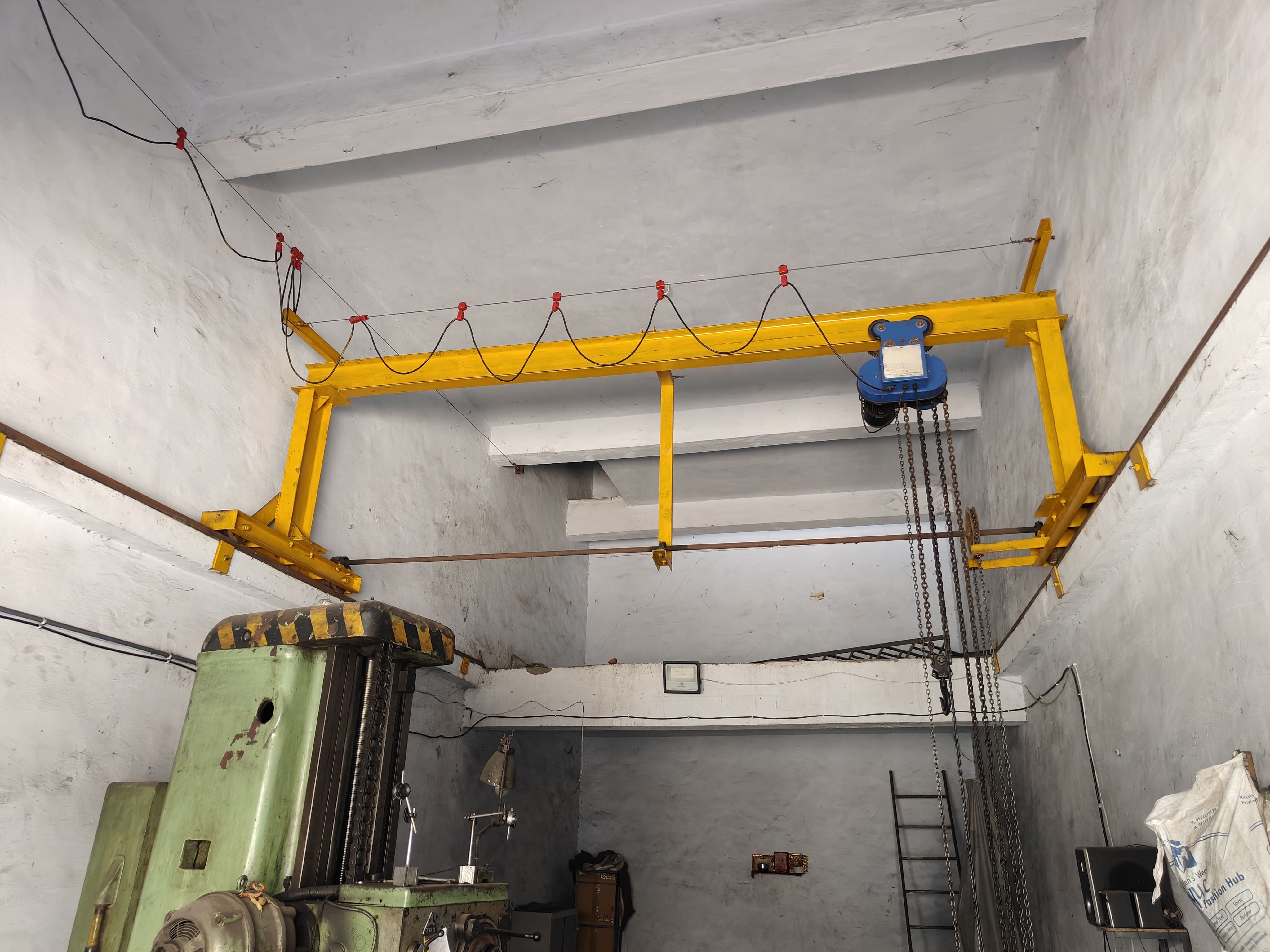

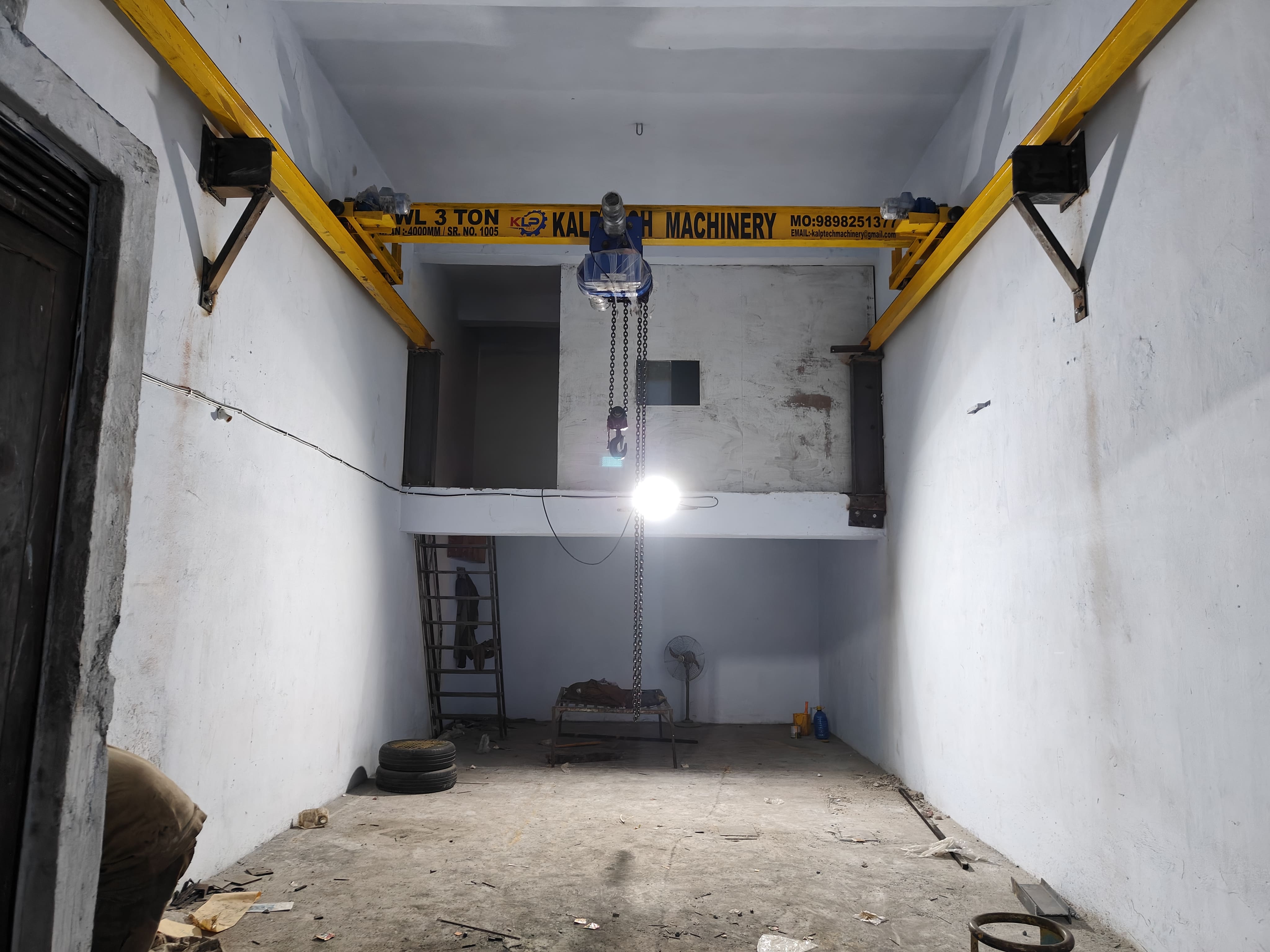

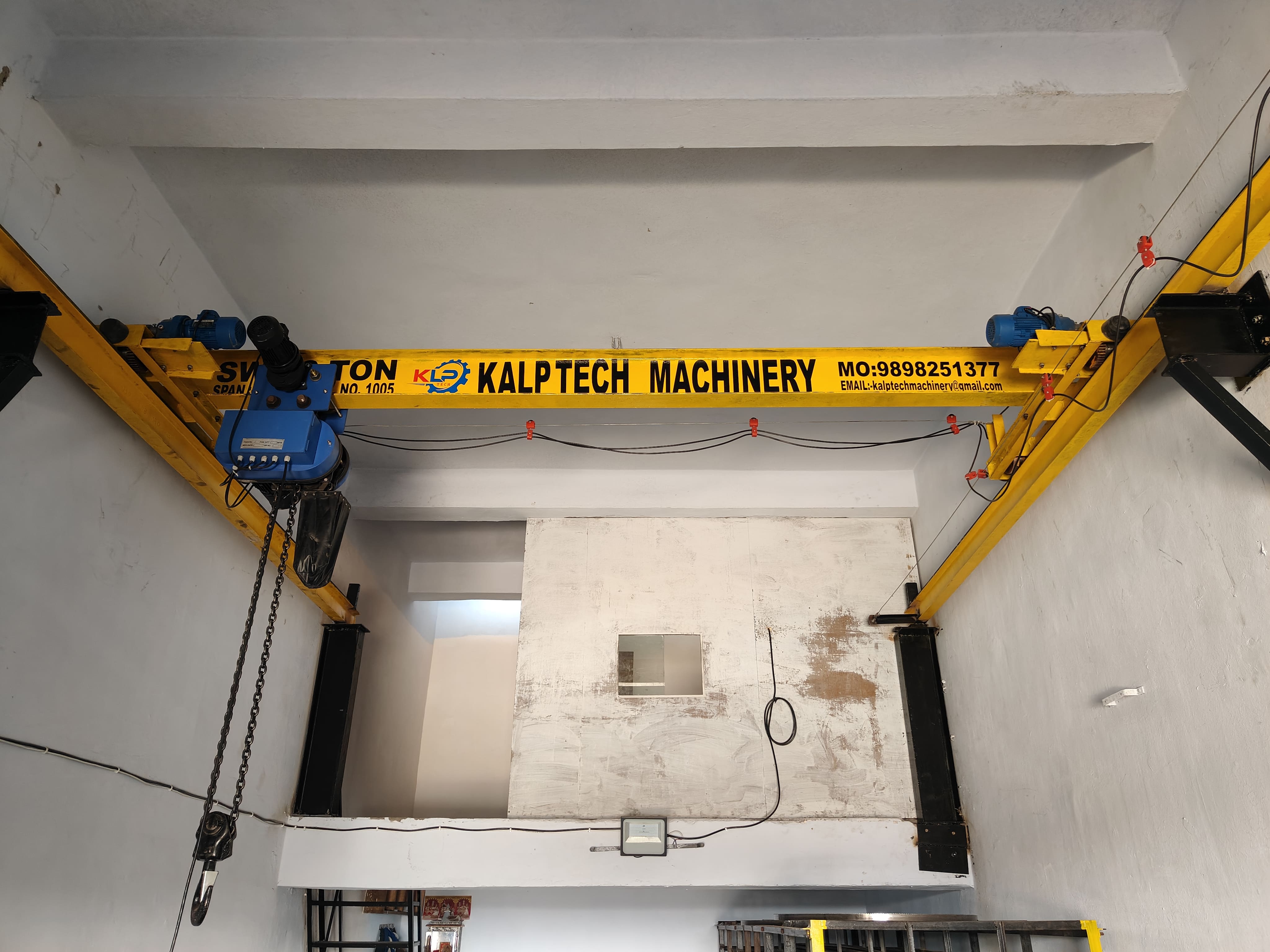

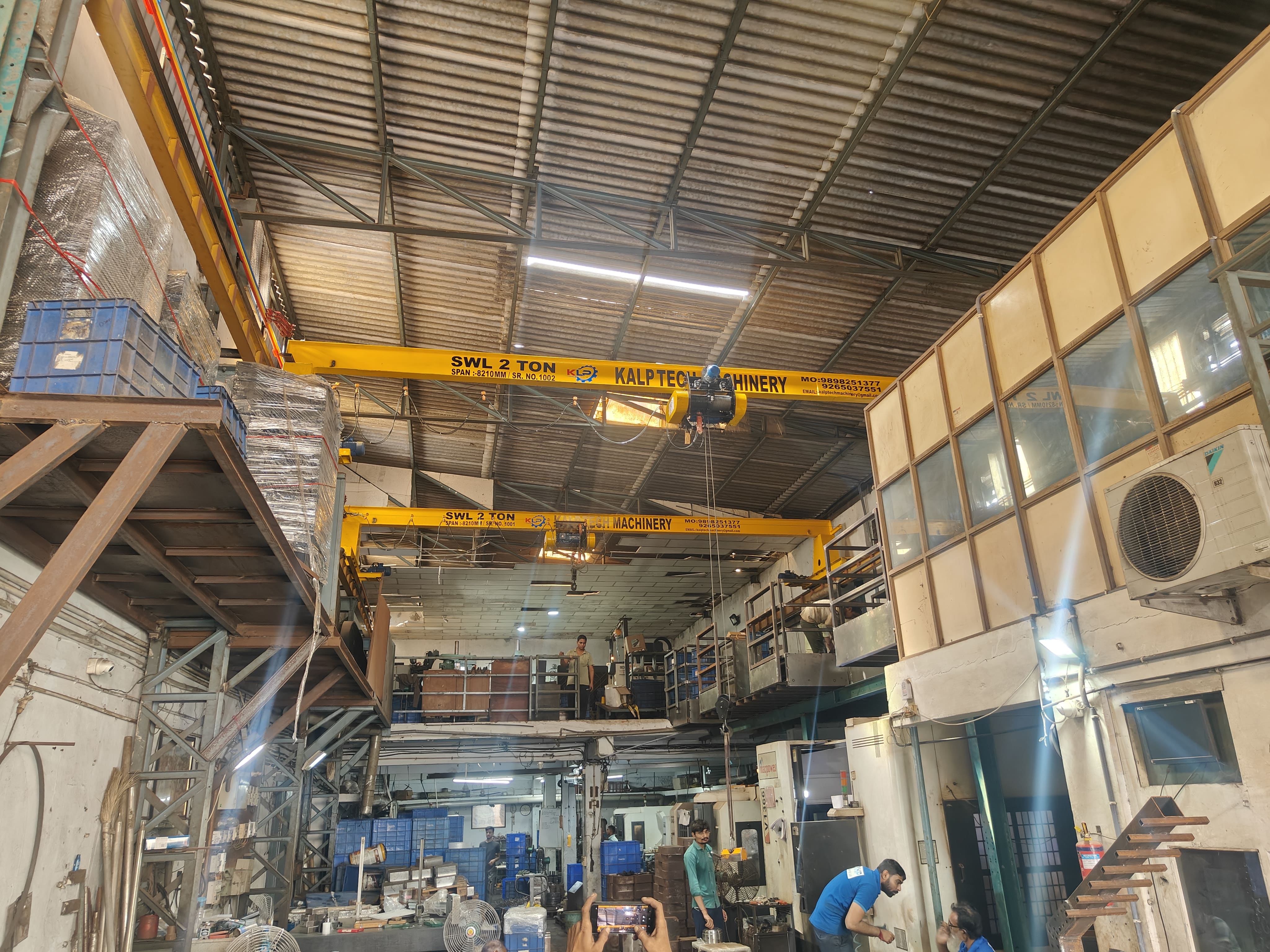

Single Girder EOT Crane are efficient and lightweight material
handling systems designed for smooth and cost-effective movement of
light to medium loads. These cranes feature a single bridge beam with
the Electric hoist mounted underneath, allowing for better floor
clearance and optimal use of space. Their compact and modular design
ensures low building load, making them ideal for small workshops,
storage units, and production areas.
At kalp tech machinery, a reliable Single Girder EOT Crane
Manufacturer based in Ahmedabad, India, we offer both standard and
tailor-made SG EOT Cranes with lifting solution for all capacities 1 Ton to 15
Ton and up to 30M span.
How it works
The 3 Axes of motion
1. Hoisting :- The Hoist Moves The load Up Down,
2. Cross Travel: The trolley Moves the hoist Left & Right Along The
single Bridge Girder
3. Long Travel :- The Entire Bridge moves forward & backward along
the runway rails fixed to the building columns.
Components typically include:
• Single main girder
• End carriages with wheels
• Electric Hoist
• Electrical control system
• Long travel Motion
Its simple structure makes it easy to maintain, cost -effective, and ideal
for lighter duty applications where heavy double girder cranes aren’t
needed.
Ideal Applications Across Industries
• Engineering & Fabrication
• Warehouse & Logistics
• Power Station
• Packaging industries
• Automotive & Componet
• Railways• Chemical industriesa
TECHNICAL SPECIFICATION AND SPECIAL FEATURES
• Capacity: 2 ton to 35 Ton
• Span Length : 3 To 30 Meters
• As per the IS 3177 & 807,
• Easily Adjustable Limit Switches
• Height Of Lift : As Per Customer Requirements
• Class Of Duty : Equivalent To M3, M4, M5, M7, M8
• Lifting speed: As per client requirement and depends on their application
of use
• heightened stability at the reduced dead weight
• Brakes: Built-in Brakes For Hoisting, Cross Travel And Long Travel Motions
• Crane Control: From Floor Through Pendent Push Buttons, and also
wireless Radio Remote Control
• Advanced Control Systems: Equipped with features like variable frequency
drive (VFD) .
• Voltage lower protection function.
• Compact and lightweight festoon or C rail cable.
